Empire Comfort Systems 30" Boulevard SL Vent-Free Linear Gas Fireplace - VFSL30FP70N

This unique clean-burning fireplace features an elegant linear burner mounted between a matte-finished black full panel at the rear and a short tempered-glass deflector panel at the front. Aided by multiple reflections through the glass in front, the Boulevard SL creates a high-definition contrast between the flames and the black panel.

With its clean lines and muted black finish, the Boulevard SL represents the last word in contemporary styling. Every Boulevard SL includes an electronic intermittent ignition system that eliminates the standing pilot to help you save energy and money. The system includes a battery back-up switch to standing pilot to operate during power outages. The fireplace ships with an on/off wall switch to mount outside the fireplace.

Upgrade to an optional wall thermostat, remote control thermostat, or even a programmable remote. Sized to fit in a stud wall, the Boulevard SL conceals its valve and control module below the burner. Openings in the casing let you route the gas supply from below, the side, or the back.

FEATURES:

Dimensions:

• 5.5" (D) x 30.25" (W) x 17.88" (H)

Includes:

• Non-combustible Board (for full or partially recessed installation
• On-Off Wall Switch with 10-ft Extension Wire
• Battery Backup with 10-ft Extension Wire
• Fine Mesh Barrier Screen

Requires:

• Decorative Front for Surface Mount or Partially Recessed installation
• Non-combustible material (tile/stone) for Partially Recessed and Fully Recessed installation
• Electrical box for Wall Switch
• Electrical box and cover for Battery Back-Up

This fireplace installs:

• Surface mounted on any wall(No Framing). Order a decorative front and wrap accessory (Does not require non-combustible materials.)
• Partially recessed in a 2 x 4 framed wall(18 x 30-3/4 x 3-1/2 inches). Use the included non-combustible board (finished with tile or stone) and order a decorative front accessory
• Fully recessed in a 2 x 6 framed wall(18 x 30-3/4 x 5-1/2 inches). Use the included non-combustible board and apply tile or stone over the face

SPECIFICATIONS:

• Fuel Type: Liquid Propane or Natural Gas
• Venting Type: Vent-Free
• Ignition: Intermittent Pilot Ignition
• Shape: Linear
• Weight: 50 lbs
• Assembly Required: Required
• Color Family: Black
• BTU Max/Min
• 10,000 BTUs or less are required for a Bedroom Application
• Bedroom units produce 10,000 BTUs
• Standard application units produce 12,000 BTUs (LP) and 14,000 BTUs (NG)

Recessed Installation:

At just 5 1/2 inches deep the Boulevard SL is the first vent-free fireplace that can install fully in a 2 x 6 stud-framed wall. Add tile right up to the rectangular opening to create a stunningly beautiful, amazingly efficient clean-face fireplace.

The optional trim kit finishes the opening and adjusts for different depths of tile or stone. Recessed installation requires installing the included non-combustible material above and to the sides of the fireplace, and tile or stone to the fireplace opening. The optional trim kit hides tile edges and adjusts from 1/2 to 1 inch.

Partially Recessed Installation:

In a 2 x 4 framed wall, the Boulevard SL can install, partially in the wall and finish with one of two fronts. Partially recessed installation requires installing included non-combustible material above the fireplace, and a Mitered Decorative Front.

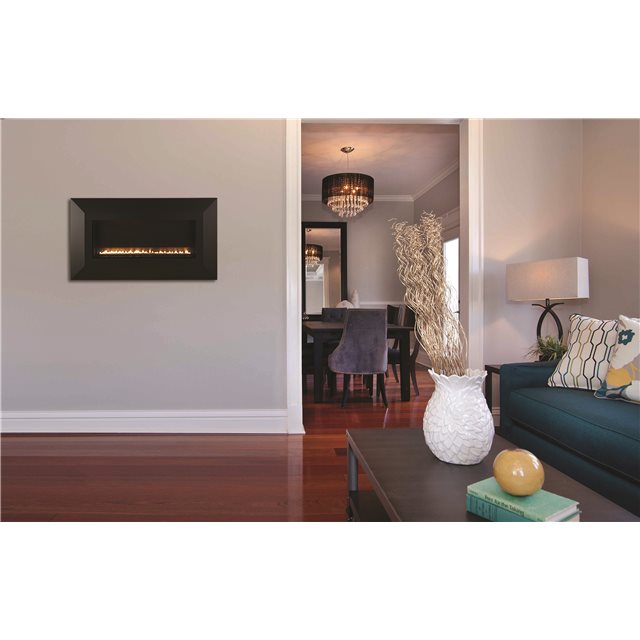

Surface-Mount Installation:

With the available fireplace wrap, the Boulevard SL can be hung like a framed art on any wall – including brick, stone, or conventional drywall – and finished with a decorative front. Surface-Mount installation requires a Mitered Decorative Front and a Fireplace Cabinet Wrap (select both options for surface mount installation).
